Model

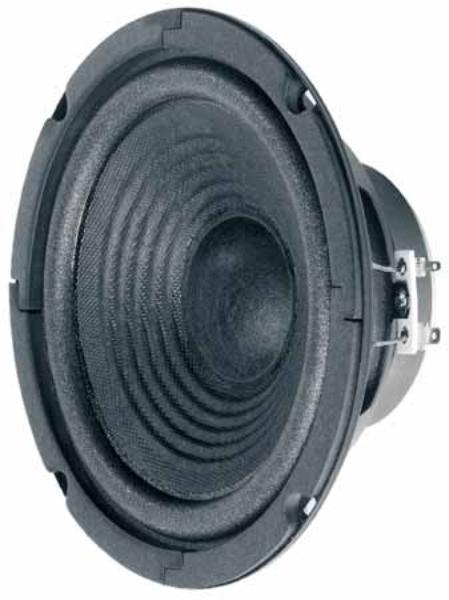

Visaton W 170/8
Rating
DIAM
7"
FS(Hz)
57
VAS(l)
24
QTS
0.69
PWR(W)
70
SPL(dB)
88.8
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
57
Vas(l)
24
Qts
0.69
Qms
2.9
Qes
0.9
Bl(Tm)
5
Mms(gr)
9
Cms(mm/N)
0.896
Rms(kg/s)
1.07
Le(mH)
0.9
Re(Ohm)
7.2
Sd(sq.mm)
13743
Vd(l)
0.103
X-max(mm)
8
X-mech(mm)
0
Parameter Umum
Diameter (inch)
7
Daya Maksimum (W)
70
Daya RMS (W)
40
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0.48
Sensitivitas (dB) 1-W
88.8
Sensitivitas (dB) 2.8-V
89.2
Informasi Pemasangan
Speaker Displacement (l)
0.38
Diameter Total (mm)
170
Diameter Cutout (mm)
143
Kedalaman Pemasangan (mm)
63
Diameter Magnet (mm)
80
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
