Model

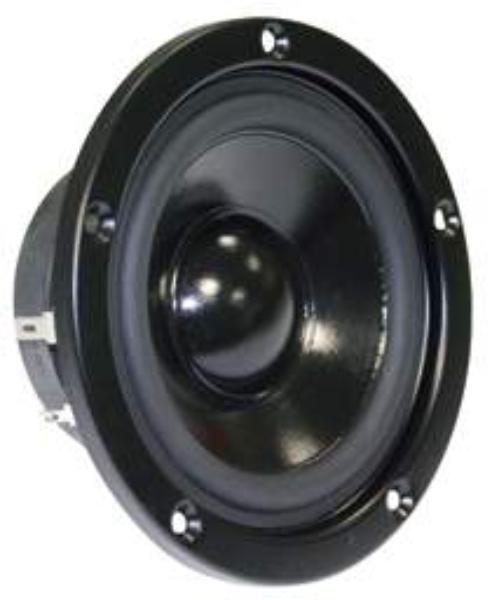

Visaton W100S-4
Rating
DIAM
5"
FS(Hz)
65
VAS(l)
4.49
QTS
0.46
PWR(W)
50
SPL(dB)
86
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
65
Vas(l)
4.5
Qts
0.46
Qms
3.04
Qes
0.54
Bl(Tm)
3.7
Mms(gr)
5
Cms(mm/N)
1.139
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
5300
Vd(l)
0.011
X-max(mm)
2
X-mech(mm)
0
Parameter Umum
Diameter (inch)
5
Daya Maksimum (W)
50
Daya RMS (W)
30
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
86
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
94
Kedalaman Pemasangan (mm)
48
Diameter Magnet (mm)
70
Enclosure Optimum
Enclosure
Vented, BP6P
