Model

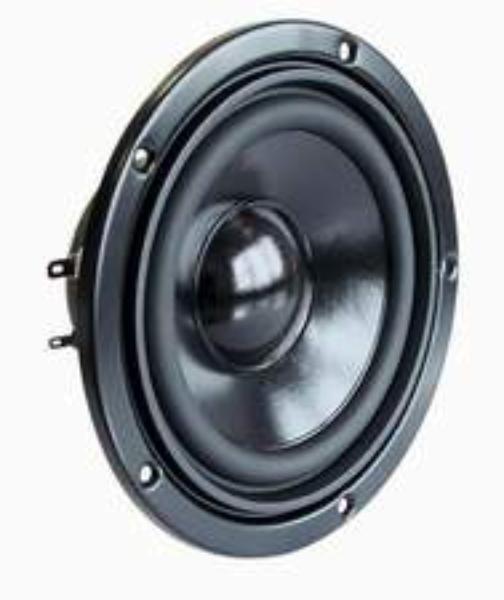

Visaton W130S-8
Rating
DIAM
6"
FS(Hz)
52
VAS(l)
12
QTS
0.47
PWR(W)
50
SPL(dB)
86.4
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
52
Vas(l)
12
Qts
0.47
Qms
2.26
Qes
0.59
Bl(Tm)
4.6
Mms(gr)
6
Cms(mm/N)
1.562
Rms(kg/s)
0.867
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
7400
Vd(l)
0.059
X-max(mm)
8
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
50
Daya RMS (W)
25
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0.28
Sensitivitas (dB) 1-W
86.4
Sensitivitas (dB) 2.8-V
87.4
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
0
Kedalaman Pemasangan (mm)
0
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Vented, BP6P
