Model

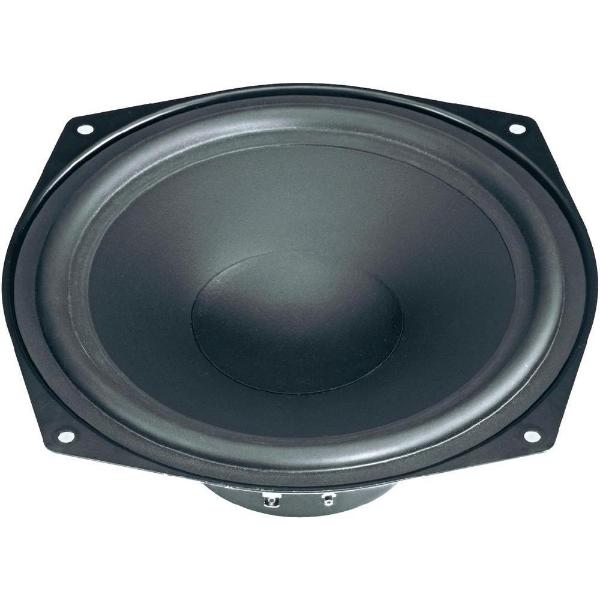

Visaton WS 17 E-4
Rating
DIAM
6"
FS(Hz)
45
VAS(l)
22
QTS
0.65
PWR(W)
90
SPL(dB)
85.3
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
45
Vas(l)
22
Qts
0.65
Qms
2.35
Qes
0.9
Bl(Tm)
3.9
Mms(gr)
16
Cms(mm/N)
0.782
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
14084
Vd(l)
0.092
X-max(mm)
7
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
90
Daya RMS (W)
60
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
85.3
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
148
Kedalaman Pemasangan (mm)
75
Diameter Magnet (mm)
81
Enclosure Optimum
Enclosure
Closed, BP4
