Description

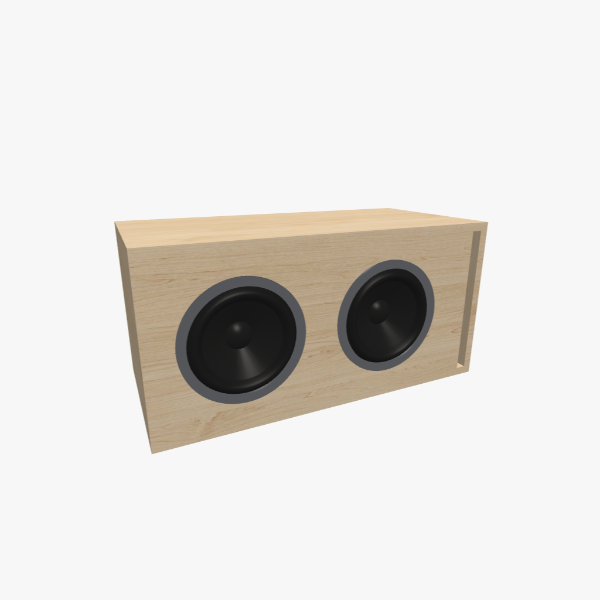

This 50 L chamber is tuned to 32 Hz and is specifically designed for a 2-driver 8-inch round subwoofer. The enclosure utilizes a Vented / Bass-Reflex design with one L-shaped slot port, featuring a port area optimized for high-output drivers with increased cone excursion and airflow demand. Constructed from 16 mm (5/8 inch) material in a simple rectangle shape, the external dimensions are 660 × 322 × 322 mm (25.93 × 12.7 × 12.7 in). It serves as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion. Additionally, it is designed for everyday car-audio use, taking limited trunk space, installation constraints, and balanced sound into account.
Volume & tuning
50 l
Internal volume
32 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
660 × 323 × 323
Box dimensions (inch)
25.93 × 12.7 × 12.7
Max RMS speaker power up to
400 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Multi
Number of speakers
2
Speaker size
8"
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
5837
