Dual 15-inch Vented / Bass-Reflex Subwoofer Box

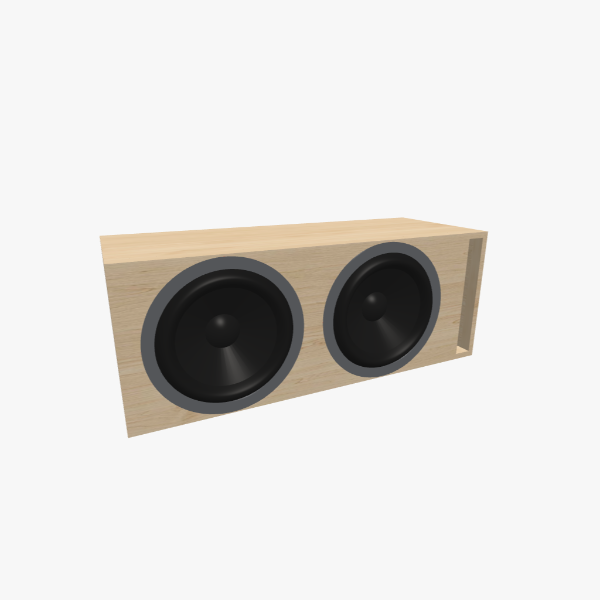

Dual 15-inch Vented / Bass-Reflex Subwoofer Box, 130 L / 32 Hz, with one L-shaped slot port, solid exterior view, 1075 × 411 × 411 mm (43 × 16.22 × 16.22 in).

Dual 15-inch Vented / Bass-Reflex Subwoofer Box, 130 L / 32 Hz, with one L-shaped slot port, solid exterior showing baffle, 1075 × 411 × 411 mm (43 × 16.22 × 16.22 in).

Dual 15-inch Vented / Bass-Reflex Subwoofer Box, 130 L / 32 Hz, with one L-shaped slot port, solid exterior front view, 1075 × 411 × 411 mm (43 × 16.22 × 16.22 in).

Dual 15-inch Vented / Bass-Reflex Subwoofer Box, 130 L / 32 Hz, with one L-shaped slot port, solid exterior side view, 1075 × 411 × 411 mm (43 × 16.22 × 16.22 in).

Dual 15-inch Vented / Bass-Reflex Subwoofer Box, 130 L / 32 Hz, with one L-shaped slot port, solid exterior top view, 1075 × 411 × 411 mm (43 × 16.22 × 16.22 in).

Dual 15-inch Vented / Bass-Reflex Subwoofer Box, 130 L / 32 Hz, with one L-shaped slot port, solid exterior angled view, 1075 × 411 × 411 mm (43 × 16.22 × 16.22 in).

Dual 15-inch Vented / Bass-Reflex Subwoofer Box, 130 L / 32 Hz, with one L-shaped slot port, disassembled parts, 1075 × 411 × 411 mm (43 × 16.22 × 16.22 in).

Description

This vented (bass-reflex) enclosure is designed for 2-driver 15-inch round subwoofer units, featuring a 130 L chamber tuned to 32 Hz. Constructed from 18 mm (3/4 inch) material in a simple rectangle shape, the cabinet measures 1075 × 411 × 411 mm (43 × 16.22 × 16.22 in). The design incorporates a double-thickness front baffle to increase rigidity and reduce flex, making it ideal for high-output systems. It utilizes one L-shaped slot port with an area optimized for high-output drivers with increased cone excursion and airflow demand. This versatile enclosure serves as a general-purpose home subwoofer for music and stereo systems, balancing bass extension, size, output, and low distortion. Additionally, it is optimized for everyday car-audio use by accounting for limited trunk space, installation constraints, and balanced sound.

Volume & tuning

130 l

Internal volume

32 Hz

Tuning frequency

Box properties

Shape

Simple Rectangle

Material thickness (mm)

Material thickness (inch)

3/4

Box dimensions (mm)

1075 × 412 × 412

Box dimensions (inch)

43 × 16.22 × 16.22

Max RMS speaker power up to

60 W

Speaker mounting panel layers

Double

Number of bands

Enclosure & speaker

Enclosure

Vented

Speaker configuration

Multi

Number of speakers

Speaker size

15"

Port

Port type

Rectangular

Port count

Port area (sq.mm)

20522

Appearances

View all

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a raw unfinished cherry wood front panel, solid exterior

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
