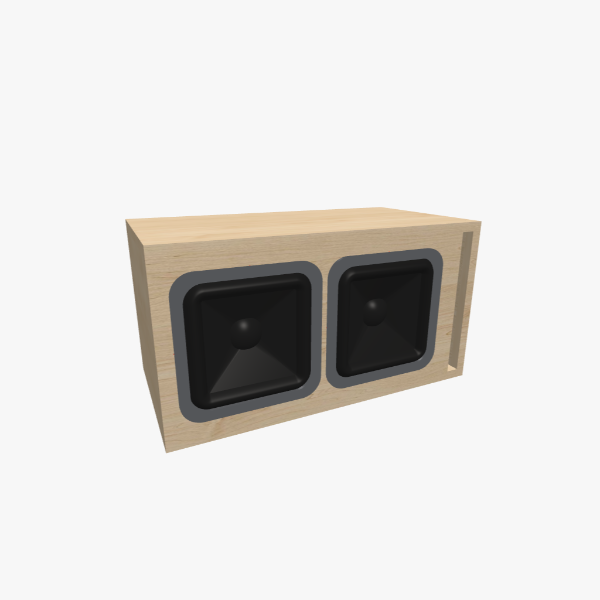

Dual 8-inch Vented / Bass-Reflex Subwoofer Box - 30 L / 38 Hz
Description
This Vented / Bass-Reflex enclosure is designed for dual 8-inch rectangular subwoofer drivers and features a simple rectangle shape built from 16 mm (5/8 inch) material. With external dimensions of 540 × 287 × 287 mm (21.24 × 11.31 × 11.31 in), the cabinet is engineered for everyday car-audio use where trunk space and installation constraints are important, as well as for general-purpose home stereo systems. The design balances bass extension, output, and low distortion using a 30 L chamber tuned to 38 Hz. It incorporates one L-shaped slot port with a port area suitable for high-output drivers with increased cone excursion and airflow demand.
Volume & tuning
30 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
541 × 287 × 287
Box dimensions (inch)
21.24 × 11.31 × 11.31
Max RMS speaker power up to
650 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Multi
Number of speakers
2
Speaker size
8" Rectangle
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
5837
