Dual 8-inch Vented / Bass-Reflex Subwoofer Box

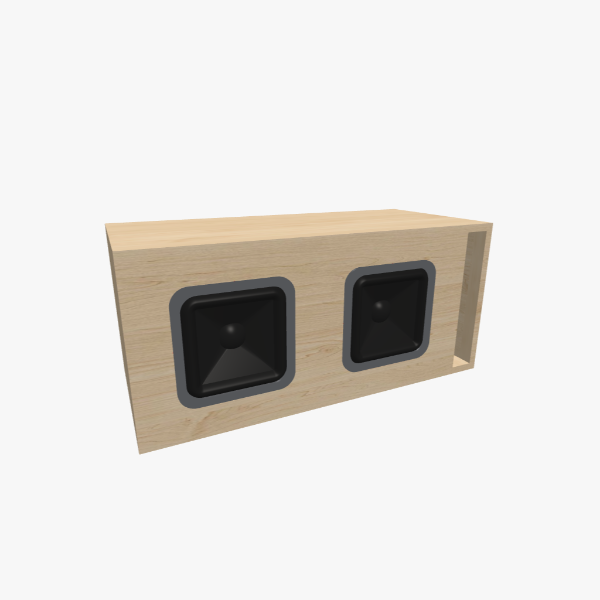

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, solid exterior, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, solid exterior, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, solid exterior, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, solid exterior, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, solid exterior, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, solid exterior, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, solid exterior, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, solid exterior, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Dual 8-inch Vented / Bass-Reflex Subwoofer Enclosure with 50 L chamber tuned to 34 Hz and one L-shaped slot port, disassembled parts, 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in).

Description

This Vented / Bass-Reflex enclosure is specifically designed for 2-driver 8-inch rectangular subwoofers, featuring a 50 L chamber tuned to 34 Hz. The cabinet is constructed from 16 mm (5/8 inch) material in a simple rectangle shape with external dimensions of 749 × 341 × 341 mm (29.43 × 13.43 × 13.43 in). A double-thickness front baffle enhances cabinet rigidity and minimizes front-panel flex, making the system ideal for high-output applications. It utilizes one L-shaped slot port with an area optimized for high-airflow demand, SPL-oriented use, and large-excursion drivers. Whether utilized as a general-purpose home subwoofer to balance bass extension and low distortion or for everyday car-audio use where trunk space and balanced sound are key, this design offers versatile performance.

Volume & tuning

50 l

Internal volume

34 Hz

Tuning frequency

Box properties

Shape

Simple Rectangle

Material thickness (mm)

16

Material thickness (inch)

5/8

Box dimensions (mm)

749 × 341 × 341

Box dimensions (inch)

29.43 × 13.43 × 13.43

Max RMS speaker power up to

950 W

Speaker mounting panel layers

Double

Number of bands

1

Enclosure & speaker

Enclosure

Vented

Speaker configuration

Multi

Number of speakers

2

Speaker size

8" Rectangle

Port

Port type

Rectangular

Port count

1

Port area (sq.mm)

16215

Appearances

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a light oak front panel, solid exterior

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a raw unfinished cherry wood front panel, solid exterior

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm rounded front edges, solid exterior

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm front panel chamfer, solid exterior

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
