Single 10-inch Round Subwoofer Sealed / Closed-Box Enclosure Subwoofer Box, 15 L

  1. Ready boxes
  2. Single 10-inch Round Subwoofer Sealed / Closed-Box Enclosure Subwoofer Box, 15 L
Use in calculator

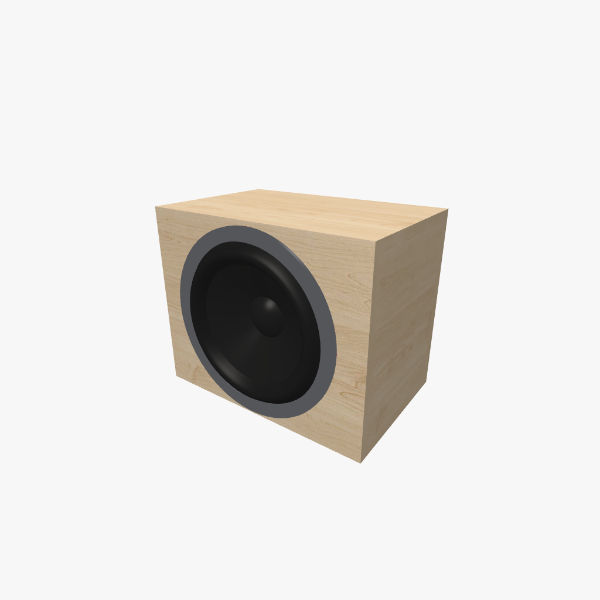

Single 10-inch round subwoofer sealed / closed-box enclosure with 15 L chamber volume, solid exterior, 345 × 280 × 225 mm (13.56 × 11.02 × 8.86 in).
Single 10-inch round subwoofer sealed / closed-box enclosure with 15 L chamber volume, solid exterior, 345 × 280 × 225 mm (13.56 × 11.02 × 8.86 in).
Single 10-inch round subwoofer sealed / closed-box enclosure with 15 L chamber volume, solid exterior, 345 × 280 × 225 mm (13.56 × 11.02 × 8.86 in).
Single 10-inch round subwoofer sealed / closed-box enclosure with 15 L chamber volume, solid exterior, 345 × 280 × 225 mm (13.56 × 11.02 × 8.86 in).

Description

This subwoofer box features a sealed (closed-box) enclosure with a chamber volume of 15 L. The cabinet is built in a simple rectangle shape using 16 mm (5/8 inch) material. Designed for use as a car subwoofer or home subwoofer, this configuration has a recommended maximum RMS power of 1200 W RMS.

Volume & tuning

15 l
Internal volume

Box properties

Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
345 × 280 × 225
Box dimensions (inch)
13.56 × 11.02 × 8.86
Max RMS speaker power up to
1200 W
Speaker mounting panel layers
Single
Number of bands
1

Enclosure & speaker

Enclosure
Closed
Speaker configuration
Single
Number of speakers
1
Speaker size
10"
Appearances
View all
Loudspeaker enclosure with a light oak front panel.

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Speaker enclosure featuring a raw, unfinished cherry wood front panel.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Loudspeaker enclosure with 12 mm rounded front edges.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Loudspeaker enclosure with 12 mm chamfered edges on the front panel.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
