Universal box template

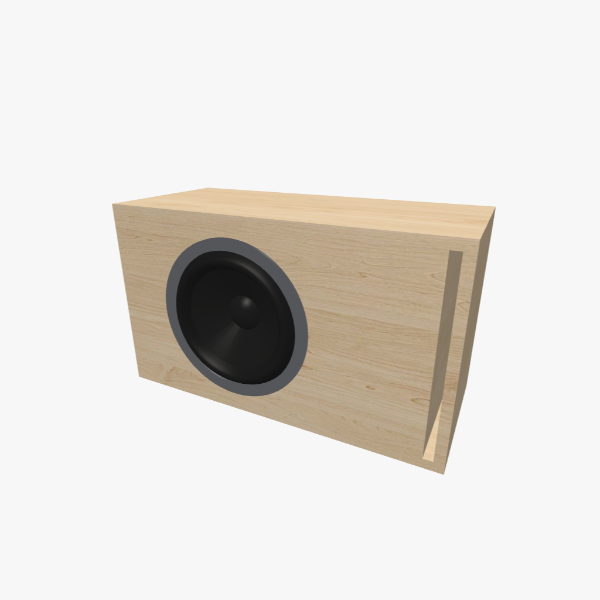

Single 10-inch Vented / Bass-Reflex Subwoofer Box - 35 L / 38 Hz
Description
This Vented / Bass-Reflex enclosure is specifically designed for a single 10-inch round subwoofer, featuring a 35 L chamber tuned to 38 Hz. Constructed from 16 mm (5/8 inch) material in a simple rectangle shape, the cabinet measures 577 × 334 × 255 mm (22.69 × 13.17 × 10.06 in). The design utilizes one L-shaped slot port with a port area optimized for drivers with moderate cone excursion and airflow demand. It serves as a balanced solution for everyday car-audio use, accounting for limited trunk space and installation constraints, while also functioning as a general-purpose home subwoofer for music and stereo systems to balance bass extension, size, output, and low distortion.
Volume & tuning
35 l
Internal volume
38 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
578 × 335 × 256
Box dimensions (inch)
22.69 × 13.17 × 10.06
Max RMS speaker power up to
500 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
10"
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
4560
