Universal box template

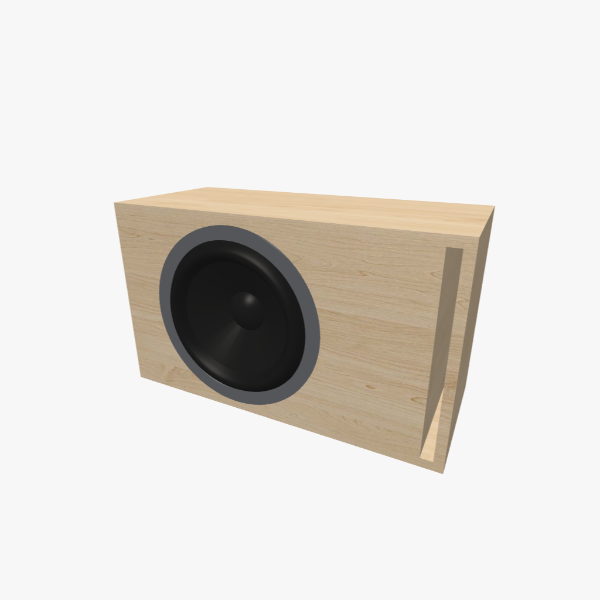

Single 12-inch Round Vented / Bass-Reflex Subwoofer Box - 40 L / 35 Hz
Description
This Vented / Bass-Reflex enclosure is designed for a single 12-inch round subwoofer. Built from 16 mm (5/8 inch) material in a Simple Rectangle shape, the cabinet measures 608 × 357 × 264 mm (23.91 × 14.09 × 10.41 in). It serves as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion. Additionally, it is optimized for everyday car-audio use by accounting for limited trunk space, installation constraints, and balanced sound. The design features a 40 L chamber tuned to 35 Hz and utilizes one L-shaped slot port. The port area is suitable for drivers with moderate cone excursion and airflow demand.
Volume & tuning
40 l
Internal volume
35 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
609 × 358 × 264
Box dimensions (inch)
23.91 × 14.09 × 10.41
Max RMS speaker power up to
250 W
Speaker mounting panel layers
Single
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
12"
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
6567
