Single 12-inch Vented / Bass-Reflex Subwoofer Enclosure - 40 L / 33 Hz

  1. Ready boxes
  2. Single 12-inch Vented / Bass-Reflex Subwoofer Enclosure - 40 L / 33 Hz
Use in calculator
PRO

Support on Patreon is required to use this template

To use this template, you must be a paid Patreon supporter.

Support the project on Patreon

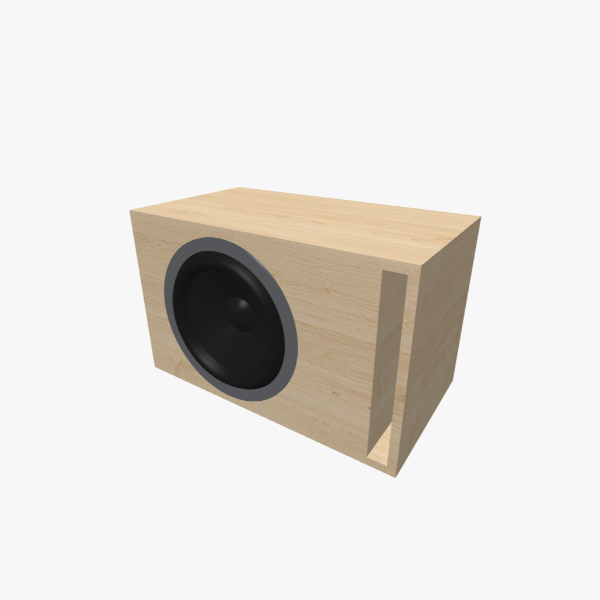

Single 12-inch Vented / Bass-Reflex Subwoofer Enclosure, 40 L chamber tuned to 33 Hz with one L-shaped slot port - solid exterior, 582 × 359 × 323 mm (22.88 × 14.14 × 12.73 in).
Single 12-inch Vented / Bass-Reflex Subwoofer Enclosure, 40 L chamber tuned to 33 Hz with one L-shaped slot port - solid exterior, 582 × 359 × 323 mm (22.88 × 14.14 × 12.73 in).
Single 12-inch Vented / Bass-Reflex Subwoofer Enclosure, 40 L chamber tuned to 33 Hz with one L-shaped slot port - solid exterior, 582 × 359 × 323 mm (22.88 × 14.14 × 12.73 in).
Single 12-inch Vented / Bass-Reflex Subwoofer Enclosure, 40 L chamber tuned to 33 Hz with one L-shaped slot port - solid exterior, 582 × 359 × 323 mm (22.88 × 14.14 × 12.73 in).
Single 12-inch Vented / Bass-Reflex Subwoofer Enclosure, 40 L chamber tuned to 33 Hz with one L-shaped slot port - solid exterior, 582 × 359 × 323 mm (22.88 × 14.14 × 12.73 in).
Single 12-inch Vented / Bass-Reflex Subwoofer Enclosure, 40 L chamber tuned to 33 Hz with one L-shaped slot port - disassembled parts, 582 × 359 × 323 mm (22.88 × 14.14 × 12.73 in).

Description

Designed for a single 12-inch round subwoofer, this Vented / Bass-Reflex enclosure features a 40 L chamber tuned to 33 Hz via one L-shaped slot port. Built from 16 mm (5/8 inch) material in a simple rectangle shape, the external dimensions measure 582 × 359 × 323 mm (22.88 × 14.14 × 12.73 in). One internal brace reinforces the cabinet to reduce panel vibration, making it ideal for high-output subwoofer systems. The port area is specifically suited for high-output drivers with increased cone excursion and airflow demand. This design balances bass extension, size, and low distortion, making it perfect for general-purpose home stereo systems or everyday car-audio use where trunk space and balanced sound are key.

Volume & tuning

40 l
Internal volume
33 Hz
Tuning frequency

Box properties

Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
582 × 359 × 323
Box dimensions (inch)
22.88 × 14.14 × 12.73
Max RMS speaker power up to
1500 W
Speaker mounting panel layers
Single
Number of bands
1

Enclosure & speaker

Enclosure
Vented
Speaker configuration
Single
Number of speakers
1
Speaker size
12"

Port

Port type
Rectangular
Port count
1
Port area (sq.mm)
11675
