Model

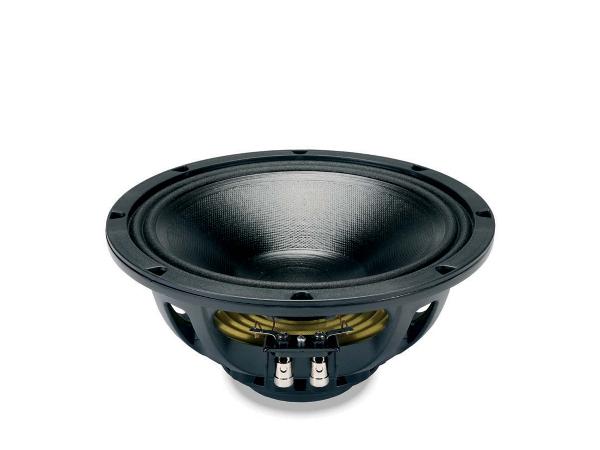

18 Sound 10NMB420
Rating
DIAM
10"
FS(Hz)
65
VAS(l)
30
QTS
0.33
PWR(W)
1000
SPL(dB)
95.4
IMP(Ohm)
16x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
65
Vas(l)
30
Qts
0.33
Qms
4.6
Qes
0.36
Bl(Tm)
19.5
Mms(gr)
32
Cms(mm/N)
0.19
Rms(kg/s)
2.797
Le(mH)
0
Re(Ohm)
10.5
Sd(sq.mm)
34600
Vd(l)
0.14
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
16
Reference efficiency η0(%)
2.21
Sensitivity(dB) 1-W
95.4
Sensitivity(dB) 2.8-V
94.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
122
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
