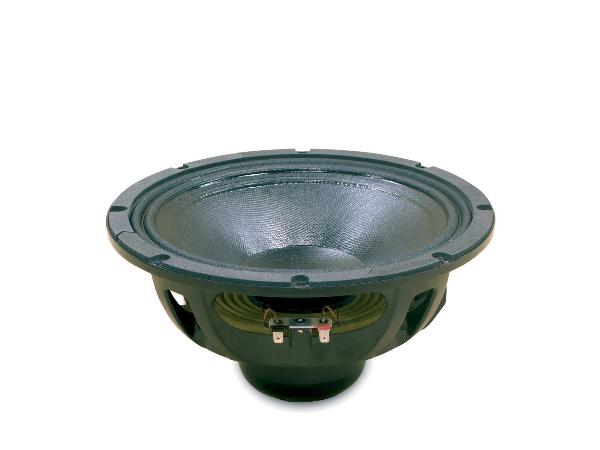

18 Sound 10NW650
18 Sound 10NW650
Model

18 Sound 10NW650

Rating
DIAM
10"
FS(Hz)
51
VAS(l)
48
QTS
0.28
PWR(W)
1200
SPL(dB)
96
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
51
Vas(l)
48
Qts
0.28
Qms
8
Qes
0.29
Bl(Tm)
14
Mms(gr)
34
Cms(mm/N)
0.286
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5
Sd(sq.mm)
34600
Vd(l)
0.24
X-max(mm)
7
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
132
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
