Model

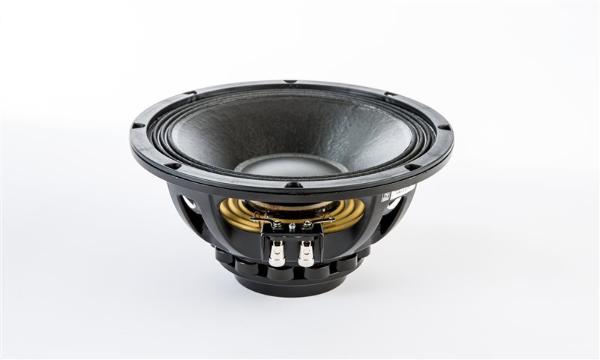

18 Sound 10NW750
Rating
DIAM
10"
FS(Hz)
53
VAS(l)
34
QTS
0.31
PWR(W)
900
SPL(dB)
93.8
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
34
Qts
0.31
Qms
5.7
Qes
0.32
Bl(Tm)
16.4
Mms(gr)
45
Cms(mm/N)
0.2
Rms(kg/s)
2.61
Le(mH)
0.6
Re(Ohm)
5.8
Sd(sq.mm)
35000
Vd(l)
0.263
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.52
Sensitivity(dB) 1-W
93.8
Sensitivity(dB) 2.8-V
95.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
260
Cutout Diameter (mm)
232
Mounting Depth (mm)
130
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
