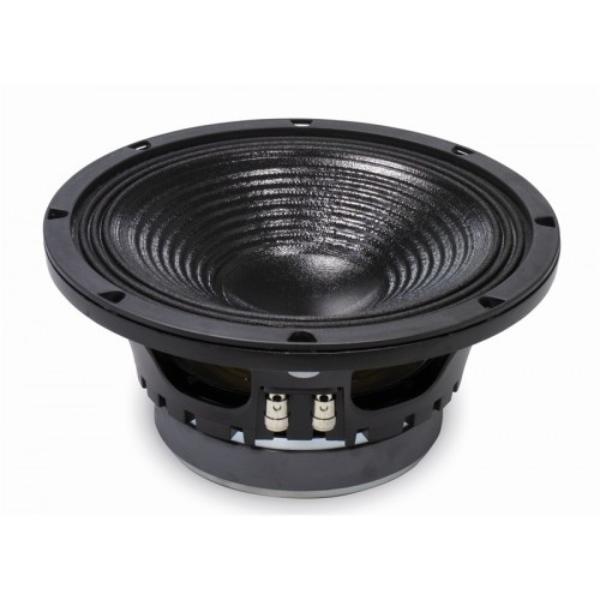

18 Sound 10W500
18 Sound 10W500
Model

18 Sound 10W500

Rating
DIAM
10"
FS(Hz)
53
VAS(l)
45.2
QTS
0.29
PWR(W)
800
SPL(dB)
96
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
53
Vas(l)
45.2
Qts
0.29
Qms
4.22
Qes
0.31
Bl(Tm)
14.6
Mms(gr)
33
Cms(mm/N)
0.273
Rms(kg/s)
2.6
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
35000
Vd(l)
0.193
X-max(mm)
6
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.09
Sensitivity(dB) 1-W
96
Sensitivity(dB) 2.8-V
96.4

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
122
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
