Model

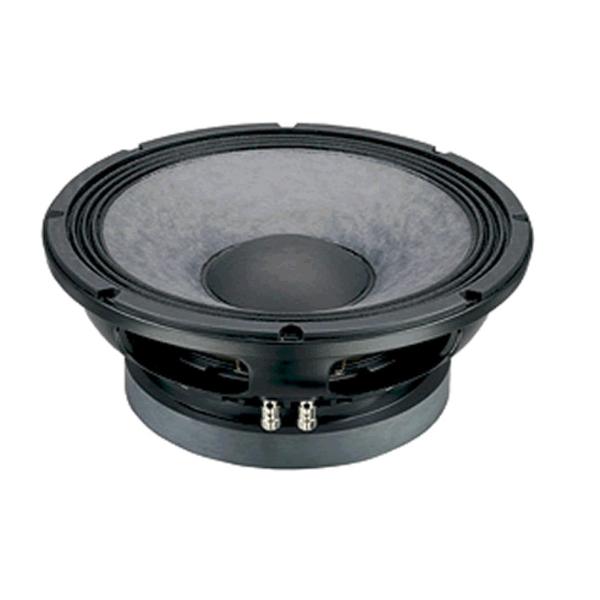

18 Sound 12LW1400
Rating
DIAM
12"
FS(Hz)
45
VAS(l)
55
QTS
0.3
PWR(W)
6000
SPL(dB)
94
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
55
Qts
0.3
Qms
5
Qes
0.32
Bl(Tm)
20
Mms(gr)
88
Cms(mm/N)
0.142
Rms(kg/s)
4.98
Le(mH)
0
Re(Ohm)
5.2
Sd(sq.mm)
53000
Vd(l)
0.44
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
6000
RMS Power(W.)
1400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
94
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
141
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
