Model

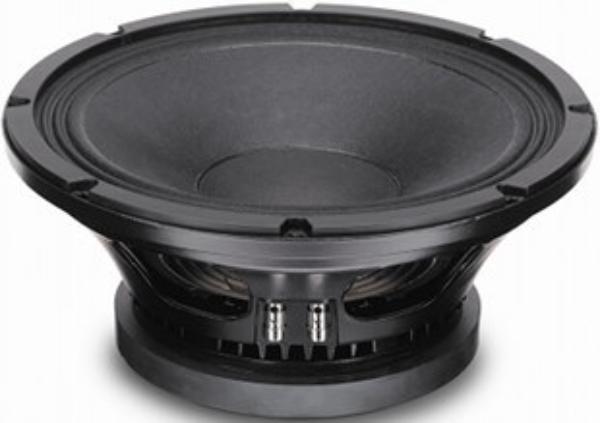

18 Sound 12MB600
Rating
DIAM
12"
FS(Hz)
44
VAS(l)
115
QTS
0.18
PWR(W)
1200
SPL(dB)
99.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
44
Vas(l)
115
Qts
0.18
Qms
3.9
Qes
0.19
Bl(Tm)
18
Mms(gr)
43
Cms(mm/N)
0.304
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5
Sd(sq.mm)
53100
Vd(l)
0.24
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
99.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
148
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
