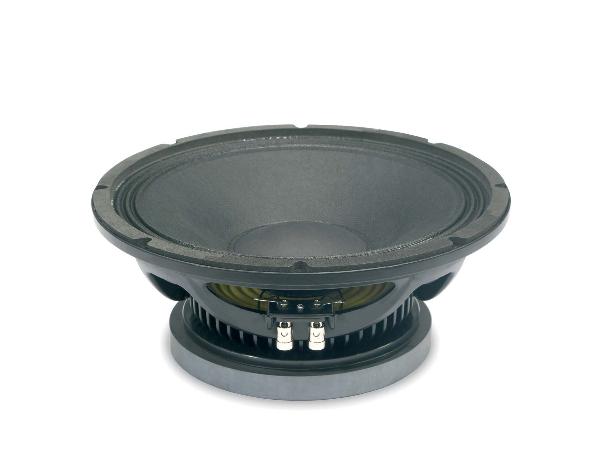

18 Sound 12MB650
18 Sound 12MB650
Model

18 Sound 12MB650

Rating
DIAM
12"
FS(Hz)
48
VAS(l)
90
QTS
0.23
PWR(W)
1600
SPL(dB)
97.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
48
Vas(l)
90
Qts
0.23
Qms
3.2
Qes
0.25
Bl(Tm)
19
Mms(gr)
48
Cms(mm/N)
0.229
Rms(kg/s)
4.524
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
53000
Vd(l)
0.29
X-max(mm)
6
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1600
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
3.84
Sensitivity(dB) 1-W
97.8
Sensitivity(dB) 2.8-V
99

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
143
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
