Model

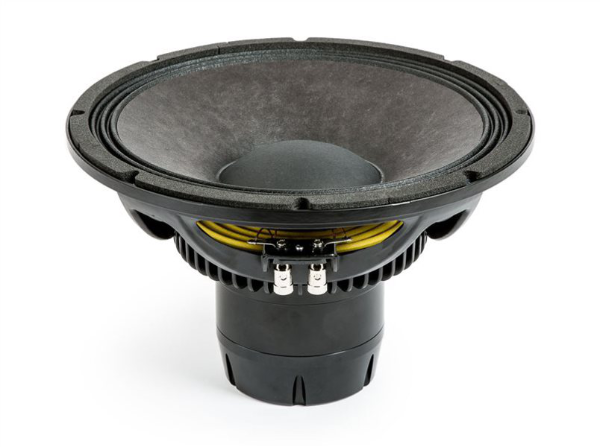

18 Sound 12NTLW3500
Rating
DIAM
12"
FS(Hz)
53
VAS(l)
45
QTS
0.33
PWR(W)
1800
SPL(dB)
94.7
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
45
Qts
0.33
Qms
8
Qes
0.35
Bl(Tm)
19.5
Mms(gr)
80
Cms(mm/N)
0.113
Rms(kg/s)
3.33
Le(mH)
0.46
Re(Ohm)
5.1
Sd(sq.mm)
53100
Vd(l)
0.478
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1800
RMS Power(W.)
900
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.85
Sensitivity(dB) 1-W
94.7
Sensitivity(dB) 2.8-V
96.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
310
Cutout Diameter (mm)
282
Mounting Depth (mm)
193
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
