Model

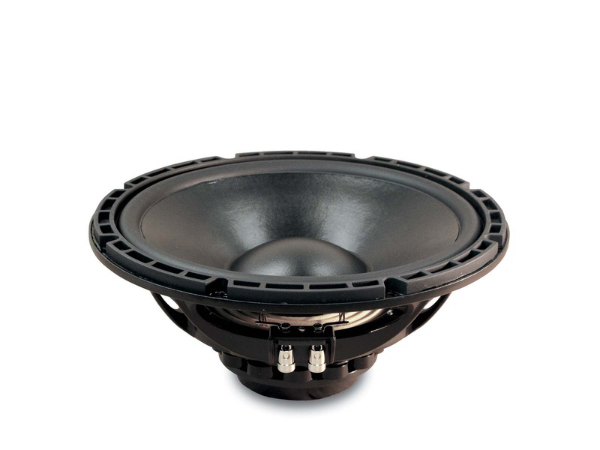

18 Sound 12NW530
Rating
DIAM
12"
FS(Hz)
55
VAS(l)
36
QTS
0.37
PWR(W)
800
SPL(dB)
93.8
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
55
Vas(l)
36
Qts
0.37
Qms
9.7
Qes
0.38
Bl(Tm)
19.7
Mms(gr)
93
Cms(mm/N)
0.09
Rms(kg/s)
3.31
Le(mH)
0.9
Re(Ohm)
4.9
Sd(sq.mm)
53000
Vd(l)
0.424
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
800
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.52
Sensitivity(dB) 1-W
93.8
Sensitivity(dB) 2.8-V
96
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
316
Cutout Diameter (mm)
279
Mounting Depth (mm)
128
Magnet Diameter (mm)
136
Optimum Enclosures
Enclosures
Vented, BP6
