Model

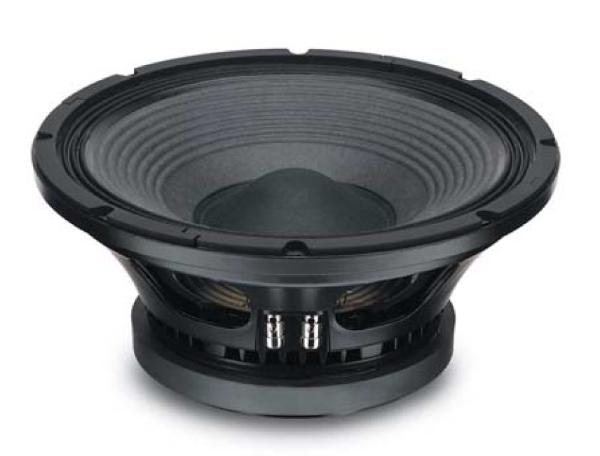

18 Sound 12W700
Rating
DIAM
12"
FS(Hz)
58
VAS(l)
55
QTS
0.36
PWR(W)
1500
SPL(dB)
97.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
58
Vas(l)
55
Qts
0.36
Qms
3.93
Qes
0.4
Bl(Tm)
17.7
Mms(gr)
51
Cms(mm/N)
0.148
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5.7
Sd(sq.mm)
53100
Vd(l)
0.35
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
700
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
97.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
148
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
