Model

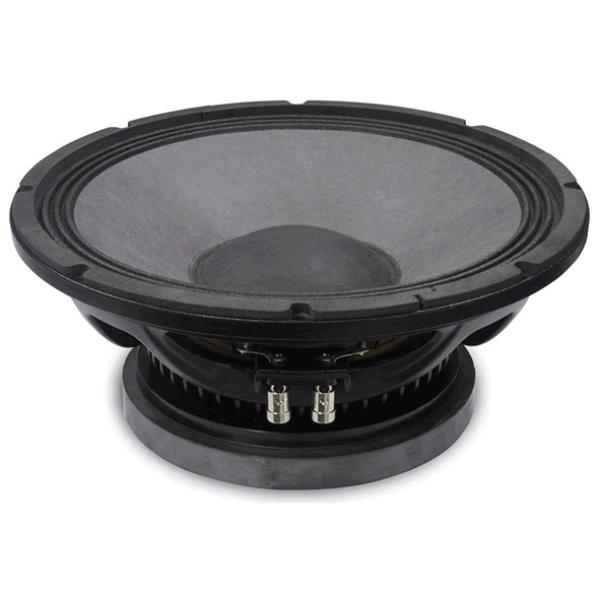

18 Sound 12W750
Rating
DIAM
12"
FS(Hz)
49
VAS(l)
73
QTS
0.28
PWR(W)
2500
SPL(dB)
96.6
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
49
Vas(l)
73
Qts
0.28
Qms
7
Qes
0.29
Bl(Tm)
18
Mms(gr)
57
Cms(mm/N)
0.185
Rms(kg/s)
2.51
Le(mH)
0.95
Re(Ohm)
5.2
Sd(sq.mm)
53100
Vd(l)
0.43
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2500
RMS Power(W.)
1200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.9
Sensitivity(dB) 1-W
96.6
Sensitivity(dB) 2.8-V
98.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
310
Cutout Diameter (mm)
280
Mounting Depth (mm)
148
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Vented, BP6
