Model

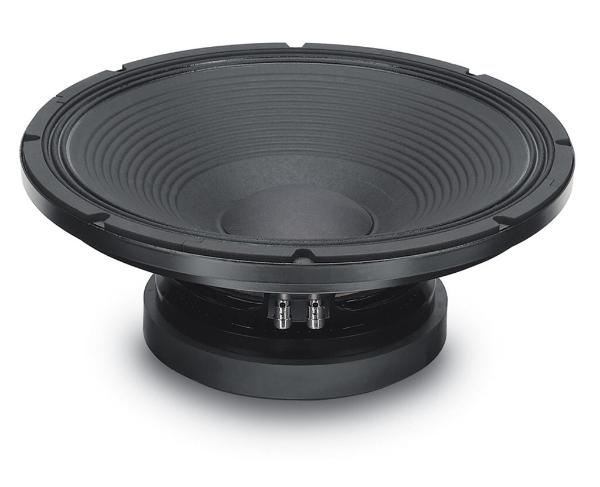

18 Sound 15LW1401
Rating
DIAM
15"
FS(Hz)
42
VAS(l)
131
QTS
0.27
PWR(W)
7000
SPL(dB)
97.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
131
Qts
0.27
Qms
5.36
Qes
0.28
Bl(Tm)
24.2
Mms(gr)
125
Cms(mm/N)
0.115
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5
Sd(sq.mm)
90000
Vd(l)
0.81
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
7000
RMS Power(W.)
1400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
97.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
163
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
