Model

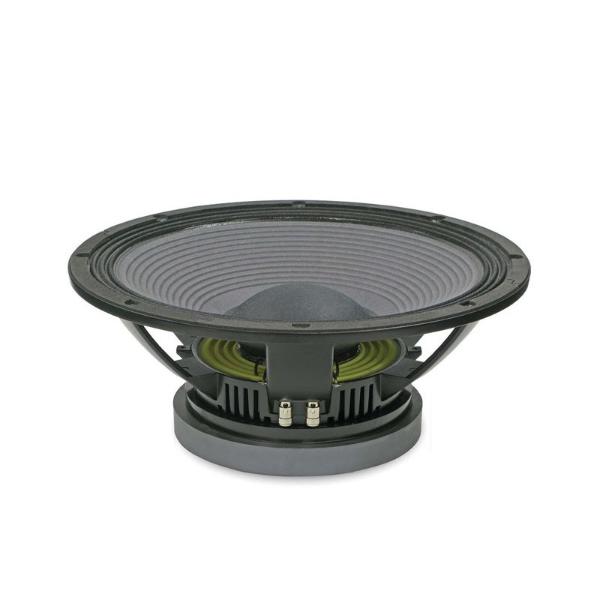

18 Sound 15LW2400
Rating
DIAM
15"
FS(Hz)
40
VAS(l)
131
QTS
0.3
PWR(W)
7000
SPL(dB)
96.4
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
131
Qts
0.3
Qms
4.75
Qes
0.32
Bl(Tm)
24
Mms(gr)
138
Cms(mm/N)
0.115
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5.3
Sd(sq.mm)
90000
Vd(l)
0.9
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
7000
RMS Power(W.)
2400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
354
Mounting Depth (mm)
181
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
