Model

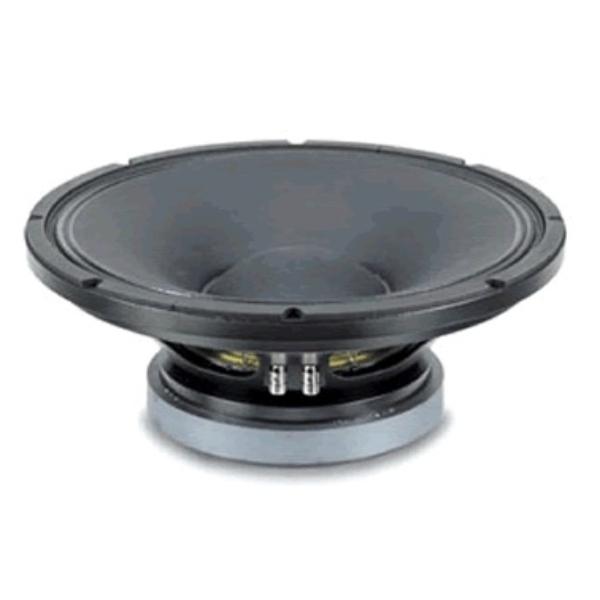

18 Sound 15MB1000
Rating
DIAM
15"
FS(Hz)
48
VAS(l)
132.5
QTS
0.31
PWR(W)
3000
SPL(dB)
98.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
48
Vas(l)
132.5
Qts
0.31
Qms
6
Qes
0.33
Bl(Tm)
21
Mms(gr)
85
Cms(mm/N)
0.129
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5.5
Sd(sq.mm)
85500
Vd(l)
0.513
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
98.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
352
Mounting Depth (mm)
156
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
