Model

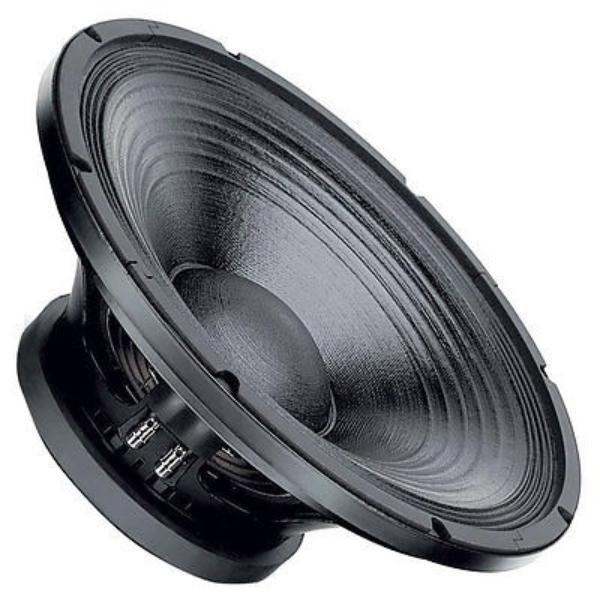

18 Sound 15MB700
Rating
DIAM
15"
FS(Hz)
42
VAS(l)
202
QTS
0.29
PWR(W)
1200
SPL(dB)
98.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
202
Qts
0.29
Qms
4.6
Qes
0.31
Bl(Tm)
17.6
Mms(gr)
73
Cms(mm/N)
0.198
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5
Sd(sq.mm)
85000
Vd(l)
0.47
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
98.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
168
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
