Model

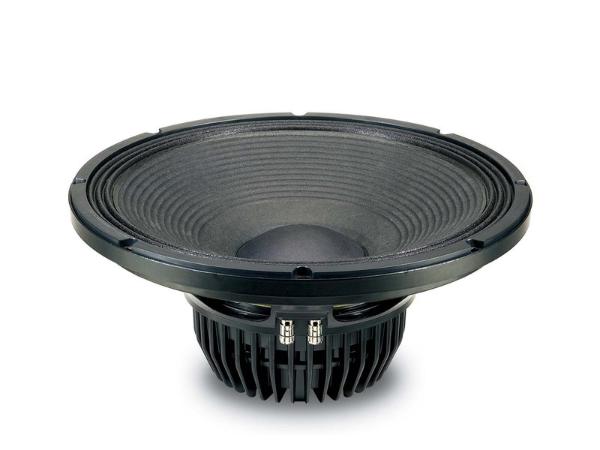

18 Sound 15NLW9300
Rating
DIAM
15"
FS(Hz)
39
VAS(l)
170
QTS
0.26
PWR(W)
2400
SPL(dB)
97
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
170
Qts
0.26
Qms
6.7
Qes
0.274
Bl(Tm)
24.4
Mms(gr)
107
Cms(mm/N)
0.156
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
90000
Vd(l)
0.72
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2400
RMS Power(W.)
800
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
97
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
174
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
