Model

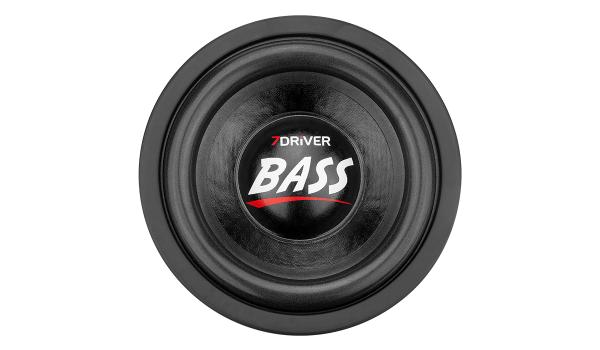

7Drive Audio 1K2 8 D2
Rating
DIAM
8"
FS(Hz)
37.7
VAS(l)
18.7
QTS
0.41
PWR(W)
1200
SPL(dB)
85.5
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37.7
Vas(l)
18.7
Qts
0.41
Qms
7.4
Qes
0.434
Bl(Tm)
10
Mms(gr)
57
Cms(mm/N)
0.311
Rms(kg/s)
1.83
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
20615
Vd(l)
0.247
X-max(mm)
12
X-mech(mm)
18
General Parameters
Diameter (inch)
8
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
89.5
Mounting Information
Speaker Displacement (l)
1.5
Total Diameter (mm)
212
Cutout Diameter (mm)
184
Mounting Depth (mm)
134
Magnet Diameter (mm)
119
Optimum Enclosures
Enclosures
Vented, BP6
