Model

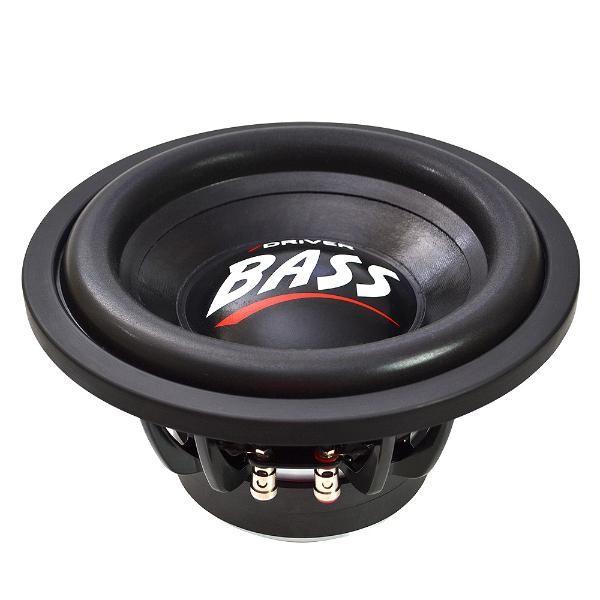

7Drive Audio 1K2 D2
Rating
DIAM
10"
FS(Hz)
33.4
VAS(l)
38.8
QTS
0.5
PWR(W)
1200
SPL(dB)
86.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.4
Vas(l)
38.8
Qts
0.504
Qms
8.508
Qes
0.536
Bl(Tm)
10.4
Mms(gr)
86
Cms(mm/N)
0.266
Rms(kg/s)
2.11
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
32000
Vd(l)
0.384
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
90.1
Mounting Information
Speaker Displacement (l)
2.1
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
