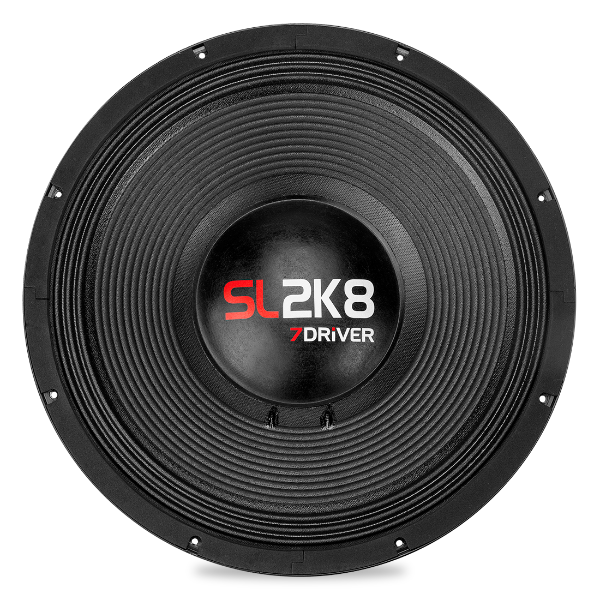

7Drive Audio SL2K8
7Drive Audio SL2K8
Model

7Drive Audio SL2K8

Rating
DIAM
15"
FS(Hz)
44.2
VAS(l)
83
QTS
0.35
PWR(W)
2800
SPL(dB)
94.8
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
44.2
Vas(l)
83
Qts
0.351
Qms
11.166
Qes
0.362
Bl(Tm)
19
Cms(mm/N)
0.08
Rms(kg/s)
4.04
Le(mH)
0.522
Mms(gr)
162
Vd(l)
1.044
Sd(sq.mm)
85568
X-max(mm)
12
X-mech(mm)
0
Re(Ohm)
2.8

General Parameters

Diameter (inch)
15
Max Power(W.)
2800
RMS Power(W.)
1400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.91
Sensitivity(dB) 1-W
94.8
Sensitivity(dB) 2.8-V
99.4

Mounting Information

Speaker Displacement (l)
6
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
