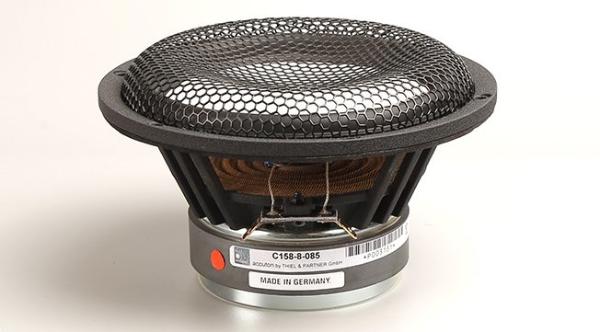

Accuton  C158-8-085
Accuton  C158-8-085
Model

Accuton C158-8-085

Rating
DIAM
6"
FS(Hz)
37
VAS(l)
27.3
QTS
0.36
PWR(W)
100
SPL(dB)
87.3
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
37
Vas(l)
27.3
Qts
0.36
Qms
4.9
Qes
0.39
Bl(Tm)
7.7
Cms(mm/N)
1.529
Rms(kg/s)
0.58
Le(mH)
0.54
Mms(gr)
12
Vd(l)
0.056
Sd(sq.mm)
11300
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
8.1

General Parameters

Diameter (inch)
6
Max Power(W.)
100
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.34
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
87.3

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
158
Cutout Diameter (mm)
137
Mounting Depth (mm)
82
Magnet Diameter (mm)
85

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
