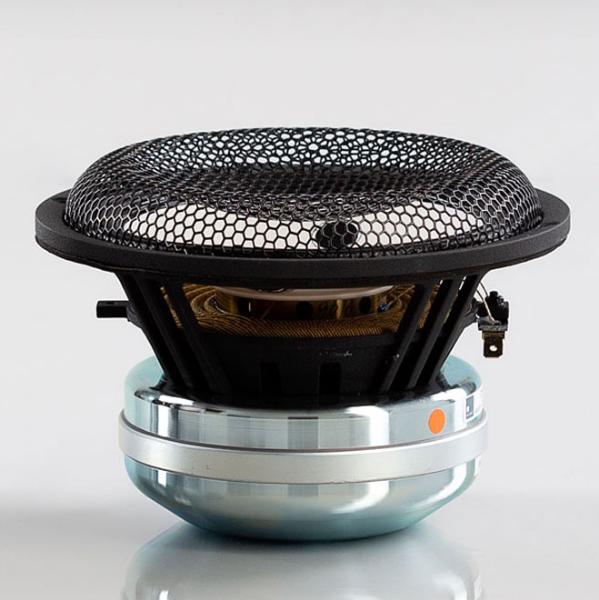

Accuton  C173-6-090
Accuton  C173-6-090
Model

Accuton C173-6-090

Rating
DIAM
8"
FS(Hz)
72
VAS(l)
15.5
QTS
0.26
PWR(W)
240
SPL(dB)
94.8
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
72
Vas(l)
15.5
Qts
0.26
Qms
3.4
Qes
0.29
Bl(Tm)
11.8
Cms(mm/N)
0.4
Rms(kg/s)
1.86
Le(mH)
0.32
Mms(gr)
15
Vd(l)
0.07
Sd(sq.mm)
13300
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
6.4

General Parameters

Diameter (inch)
8
Max Power(W.)
240
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.92
Sensitivity(dB) 1-W
94.8
Sensitivity(dB) 2.8-V
95.8

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
173
Cutout Diameter (mm)
146
Mounting Depth (mm)
96
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
