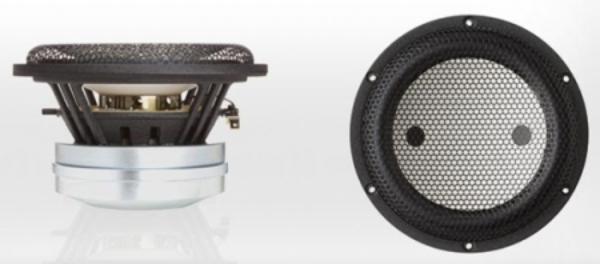

Accuton  C173-6-096E
Accuton  C173-6-096E
Model

Accuton C173-6-096E

Rating
DIAM
7"
FS(Hz)
53.8
VAS(l)
13.8
QTS
0.26
PWR(W)
240
SPL(dB)
90.8
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
53.8
Vas(l)
13.8
Qts
0.26
Qms
5.6
Qes
0.273
Bl(Tm)
11.3
Cms(mm/N)
0.58
Rms(kg/s)
0.911
Le(mH)
0.31
Mms(gr)
15
Vd(l)
0.065
Sd(sq.mm)
13000
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
6.8

General Parameters

Diameter (inch)
7
Max Power(W.)
240
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.76
Sensitivity(dB) 1-W
90.8
Sensitivity(dB) 2.8-V
91.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
173
Cutout Diameter (mm)
146
Mounting Depth (mm)
96
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
