Model

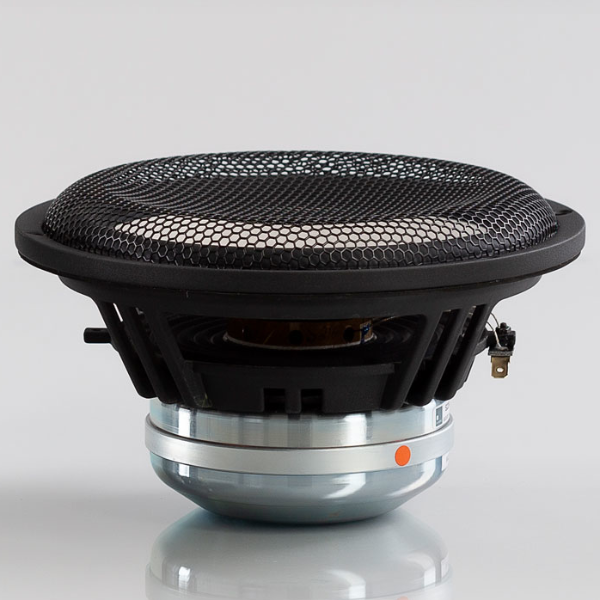

Accuton C220-6-222
Rating
DIAM
8"
FS(Hz)
29.5
VAS(l)
74
QTS
0.26
PWR(W)
300
SPL(dB)
90.3
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.5
Vas(l)
74
Qts
0.26
Qms
5.6
Qes
0.27
Bl(Tm)
11.7
Mms(gr)
28
Cms(mm/N)
1.04
Rms(kg/s)
0.93
Le(mH)
0.37
Re(Ohm)
7.2
Sd(sq.mm)
22400
Vd(l)
0.134
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.68
Sensitivity(dB) 1-W
90.3
Sensitivity(dB) 2.8-V
90.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
220
Cutout Diameter (mm)
191
Mounting Depth (mm)
104
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Vented, BP6
