Model

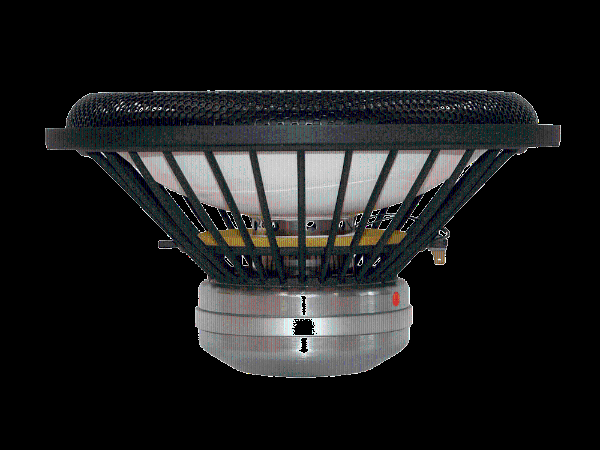

Accuton S280-6-282 SANDWICH BASS
Rating
DIAM
11"
FS(Hz)
22.8
VAS(l)
185
QTS
0.26
PWR(W)
300
SPL(dB)
90.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
22.8
Vas(l)
185
Qts
0.26
Qms
4.91
Qes
0.28
Bl(Tm)
15.3
Mms(gr)
63
Cms(mm/N)
0.78
Rms(kg/s)
1.87
Le(mH)
0.68
Re(Ohm)
6.6
Sd(sq.mm)
40800
Vd(l)
0.245
X-max(mm)
6
X-mech(mm)
10
General Parameters
Diameter (inch)
11
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.75
Sensitivity(dB) 1-W
90.8
Sensitivity(dB) 2.8-V
91.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
280
Cutout Diameter (mm)
251
Mounting Depth (mm)
132
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
