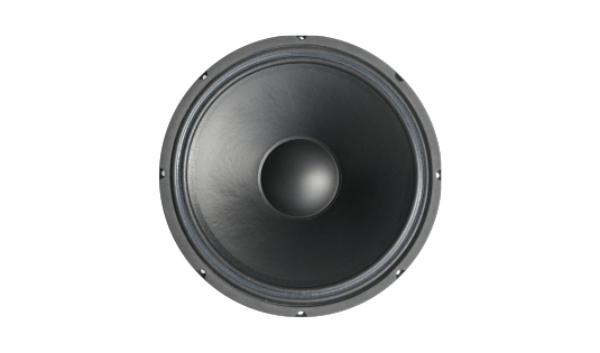

ACR Speaker 12 ARRAY 3060 M FABULOUS
ACR Speaker 12 ARRAY 3060 M FABULOUS
Model

ACR Speaker 12 ARRAY 3060 M FABULOUS

Rating
DIAM
12"
FS(Hz)
47
VAS(l)
71.1
QTS
0.38
PWR(W)
400
SPL(dB)
94.6
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
47
Vas(l)
71.1
Qts
0.38
Qms
14.5
Qes
0.39
Bl(Tm)
15.5
Cms(mm/N)
0.199
Rms(kg/s)
1.17
Le(mH)
0
Mms(gr)
58
Vd(l)
0.331
Sd(sq.mm)
50192
X-max(mm)
7
X-mech(mm)
0
Re(Ohm)
5.2

General Parameters

Diameter (inch)
12
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.82
Sensitivity(dB) 1-W
94.6
Sensitivity(dB) 2.8-V
96.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
