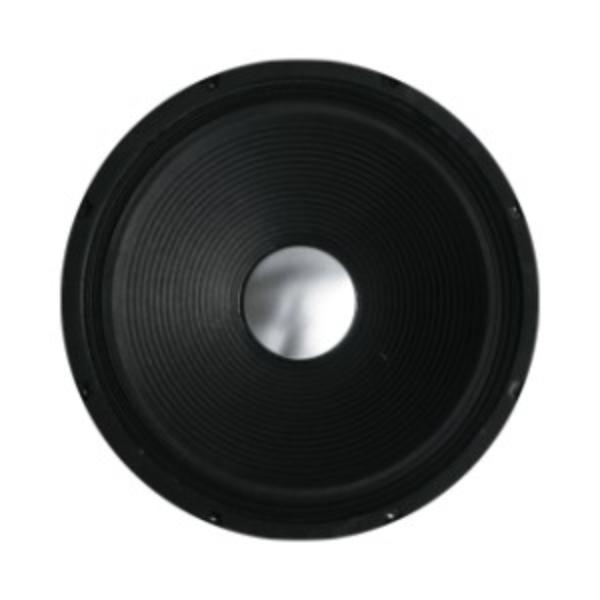

ACR Speaker 15400 PRO NEW
ACR Speaker 15400 PRO NEW
Model

ACR Speaker 15400 PRO NEW

Rating
DIAM
15"
FS(Hz)
42
VAS(l)
214.3
QTS
0.83
PWR(W)
350
SPL(dB)
94.3
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
42
Vas(l)
214.3
Qts
0.83
Qms
11.69
Qes
0.9
Bl(Tm)
10.8
Cms(mm/N)
0.203
Rms(kg/s)
1.601
Le(mH)
0
Mms(gr)
71
Vd(l)
0.27
Sd(sq.mm)
90000
X-max(mm)
3
X-mech(mm)
0
Re(Ohm)
5.6

General Parameters

Diameter (inch)
15
Max Power(W.)
350
RMS Power(W.)
175
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.7
Sensitivity(dB) 1-W
94.3
Sensitivity(dB) 2.8-V
95.8

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
