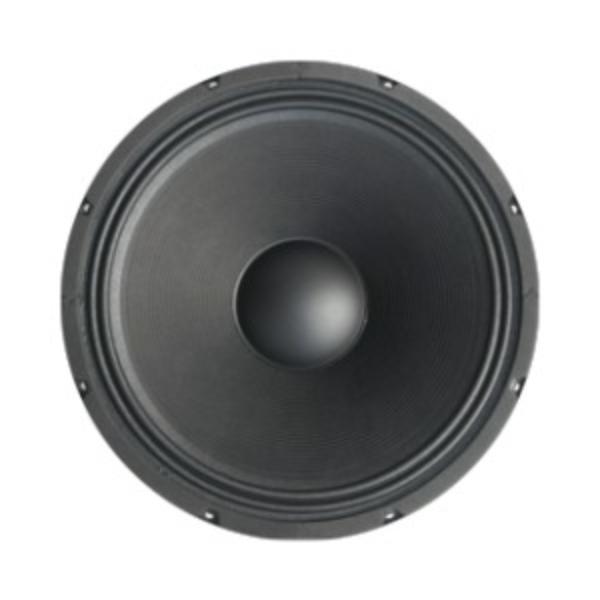

ACR Speaker 15600 BLACK
ACR Speaker 15600 BLACK
Model

ACR Speaker 15600 BLACK

Rating
DIAM
15"
FS(Hz)
40
VAS(l)
183
QTS
0.54
PWR(W)
500
SPL(dB)
95
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
40
Vas(l)
183
Qts
0.54
Qms
10
Qes
0.57
Bl(Tm)
15.8
Cms(mm/N)
0.19
Rms(kg/s)
1.98
Le(mH)
60
Mms(gr)
79
Vd(l)
0.453
Sd(sq.mm)
82408
X-max(mm)
6
X-mech(mm)
0
Re(Ohm)
6.8

General Parameters

Diameter (inch)
15
Max Power(W.)
500
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.98
Sensitivity(dB) 1-W
95
Sensitivity(dB) 2.8-V
95.7

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
