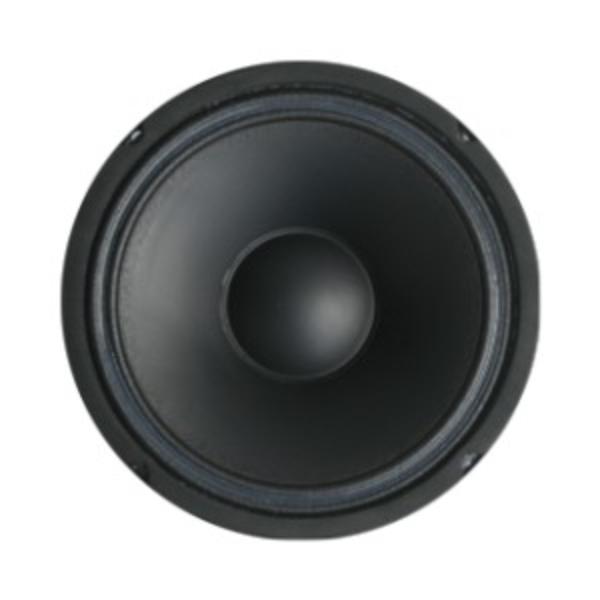

ACR Speaker ARRAY 2050 M FABULOUS 8
ACR Speaker ARRAY 2050 M FABULOUS 8
Model

ACR Speaker ARRAY 2050 M FABULOUS 8

Rating
DIAM
8"
FS(Hz)
106
VAS(l)
8.2
QTS
0.57
PWR(W)
250
SPL(dB)
93.8
IMP(Ohm)
8x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
106
Vas(l)
8.2
Qts
0.57
Qms
6.63
Qes
0.624
Bl(Tm)
11.1
Cms(mm/N)
0.113
Rms(kg/s)
2.01
Le(mH)
0
Mms(gr)
20
Vd(l)
0.105
Sd(sq.mm)
22620
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
5.8

General Parameters

Diameter (inch)
8
Max Power(W.)
250
RMS Power(W.)
125
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.51
Sensitivity(dB) 1-W
93.8
Sensitivity(dB) 2.8-V
95.2

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
