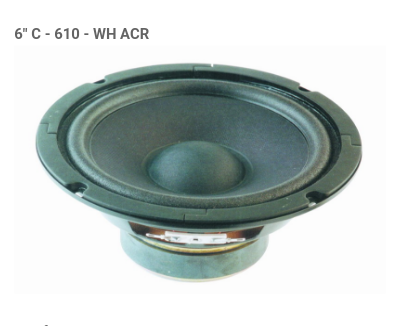

ACR Speaker C-610-WH
ACR Speaker C-610-WH
Model

ACR Speaker C-610-WH

Rating
DIAM
6"
FS(Hz)
56
VAS(l)
17.8
QTS
0.59
PWR(W)
120
SPL(dB)
88.1
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
56
Vas(l)
17.8
Qts
0.59
Qms
2.9
Qes
0.74
Bl(Tm)
4.6
Cms(mm/N)
0.939
Rms(kg/s)
1.04
Le(mH)
0.29
Mms(gr)
9
Vd(l)
0
Sd(sq.mm)
11690
X-max(mm)
0
X-mech(mm)
0
Re(Ohm)
5.1

General Parameters

Diameter (inch)
6
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.41
Sensitivity(dB) 1-W
88.1
Sensitivity(dB) 2.8-V
90.1

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
143
Mounting Depth (mm)
65
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
