Model

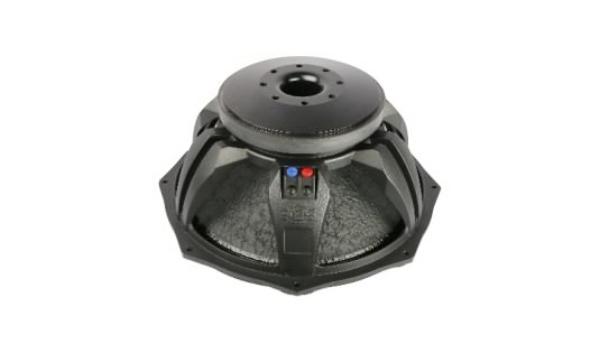

ACR Speaker FABULOUS 18 PA-113183 MK-II SW
Rating
DIAM
18"
FS(Hz)
40
VAS(l)
293.9
QTS
0.34
PWR(W)
1500
SPL(dB)
99.1
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
293.9
Qts
0.34
Qms
8.77
Qes
0.354
Bl(Tm)
26.3
Mms(gr)
187
Cms(mm/N)
0.085
Rms(kg/s)
5.35
Le(mH)
0
Re(Ohm)
5.2
Sd(sq.mm)
125630
Vd(l)
1.024
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
99.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
426
Mounting Depth (mm)
214
Magnet Diameter (mm)
250
Optimum Enclosures
Enclosures
BP6P, Vented
