Model

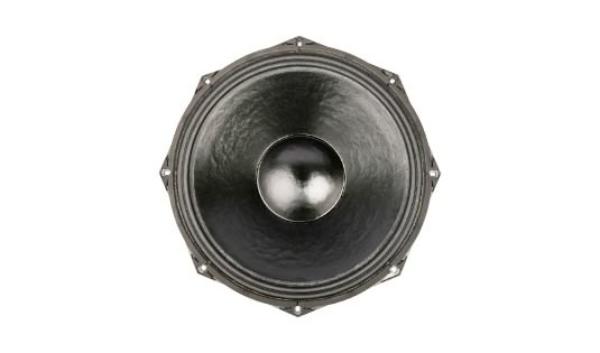

ACR Speaker FABULOUS 18 PA-113183 SW
Rating
DIAM
18"
FS(Hz)
33
VAS(l)
220.3
QTS
0.42
PWR(W)
1300
SPL(dB)
95.4
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
220.3
Qts
0.42
Qms
10.05
Qes
0.352
Bl(Tm)
25
Mms(gr)
193
Cms(mm/N)
0.121
Rms(kg/s)
3.982
Le(mH)
0
Re(Ohm)
5.5
Sd(sq.mm)
125660
Vd(l)
0.848
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
1300
RMS Power(W.)
750
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
388
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
