Model

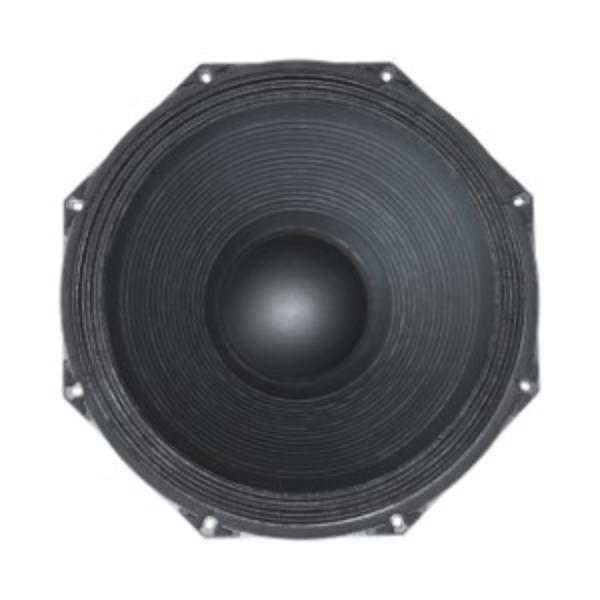

ACR Speaker FABULOUS 18-PA 113186 SW
Rating
DIAM
18"
FS(Hz)
37
VAS(l)
208.4
QTS
0.34
PWR(W)
2000
SPL(dB)
96.6
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
208.4
Qts
0.34
Qms
9.2
Qes
0.35
Bl(Tm)
28.5
Mms(gr)
236
Cms(mm/N)
0.078
Rms(kg/s)
5.959
Le(mH)
0
Re(Ohm)
5.2
Sd(sq.mm)
127776
Vd(l)
1.661
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.91
Sensitivity(dB) 1-W
96.6
Sensitivity(dB) 2.8-V
98.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
