Model

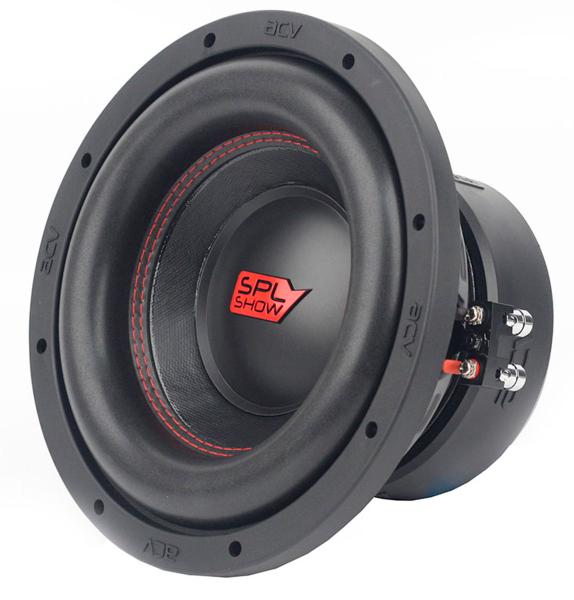

ACV SW PRO122D SPL SHOW
Rating
DIAM
12"
FS(Hz)
28
VAS(l)
49
QTS
0.4
PWR(W)
1500
SPL(dB)
85.7
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
49
Qts
0.4
Qms
5
Qes
0.44
Bl(Tm)
20.9
Mms(gr)
192
Cms(mm/N)
0.16
Rms(kg/s)
6.756
Le(mH)
1.24
Re(Ohm)
5.7
Sd(sq.mm)
46469
Vd(l)
0.883
X-max(mm)
19
X-mech(mm)
29
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
87.2
Mounting Information
Speaker Displacement (l)
2.1
Total Diameter (mm)
316
Cutout Diameter (mm)
286
Mounting Depth (mm)
156
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
