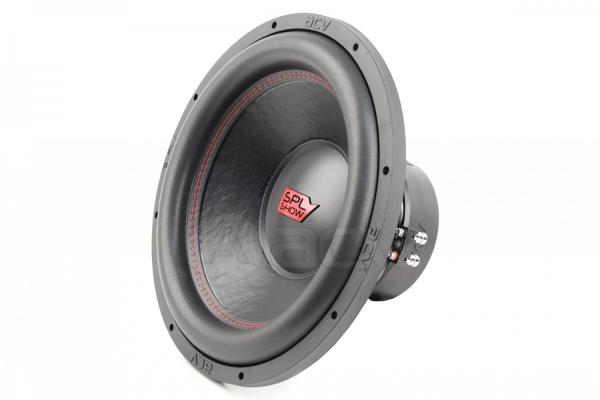

ACV SW PRO151D
ACV SW PRO151D
Model

ACV SW PRO151D

Rating
DIAM
15"
FS(Hz)
25
VAS(l)
75
QTS
0.42
PWR(W)
1500
SPL(dB)
85.5
IMP(Ohm)
1x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
25
Vas(l)
75
Qts
0.42
Qms
4.5
Qes
0.5
Bl(Tm)
12.8
Cms(mm/N)
0.155
Rms(kg/s)
9.11
Le(mH)
1.16
Mms(gr)
261
Vd(l)
1.11
Sd(sq.mm)
58410
X-max(mm)
19
X-mech(mm)
29
Re(Ohm)
2

General Parameters

Diameter (inch)
15
Max Power(W.)
1500
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
91.6

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
392
Cutout Diameter (mm)
357
Mounting Depth (mm)
183
Magnet Diameter (mm)
162

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
