Model

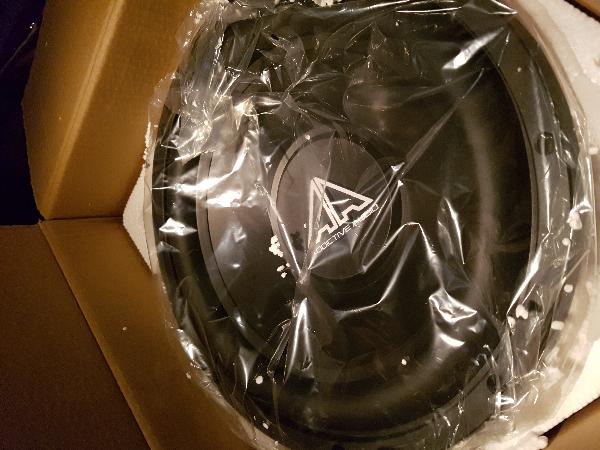

Addictive Audio AA12V1 D4
Rating
DIAM
12"
FS(Hz)
33.2
VAS(l)
50.2
QTS
0.58
PWR(W)
600
SPL(dB)
86.2
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.2
Vas(l)
50.2
Qts
0.581
Qms
4.173
Qes
0.674
Bl(Tm)
9.2
Mms(gr)
170
Cms(mm/N)
0.135
Rms(kg/s)
8.505
Le(mH)
1.17
Re(Ohm)
1.6
Sd(sq.mm)
51215
Vd(l)
0.615
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
93.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
