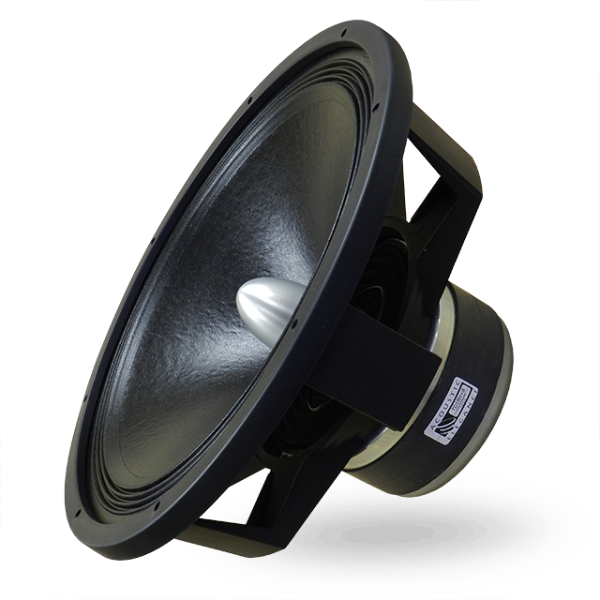

AE Speakers ACOUSTIC ELEGANCE TD18H+ 4OHM
AE Speakers ACOUSTIC ELEGANCE TD18H+ 4OHM
Model

AE Speakers ACOUSTIC ELEGANCE TD18H+ 4OHM

Rating
DIAM
18"
FS(Hz)
29
VAS(l)
390
QTS
0.22
PWR(W)
2000
SPL(dB)
98
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
29
Vas(l)
390
Qts
0.22
Qms
5.9
Qes
0.23
Bl(Tm)
19.1
Cms(mm/N)
0.183
Rms(kg/s)
5.1
Le(mH)
0.41
Mms(gr)
165
Vd(l)
1.716
Sd(sq.mm)
122583
X-max(mm)
14
X-mech(mm)
25
Re(Ohm)
2.8

General Parameters

Diameter (inch)
18
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
3.99
Sensitivity(dB) 1-W
98
Sensitivity(dB) 2.8-V
102.6

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
