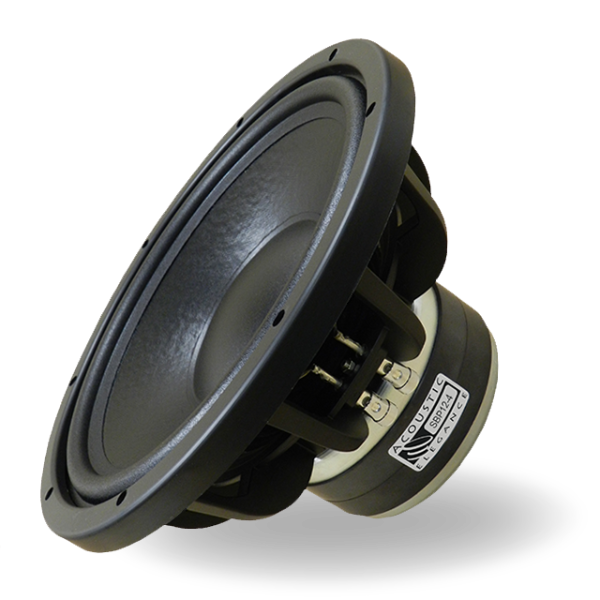

AE Speakers SBP12-8
AE Speakers SBP12-8
Model

AE Speakers SBP12-8

Rating
DIAM
12"
FS(Hz)
23.6
VAS(l)
160
QTS
0.48
PWR(W)
1000
SPL(dB)
87.7
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
23.6
Vas(l)
160
Qts
0.48
Qms
4.2
Qes
0.54
Bl(Tm)
13.1
Cms(mm/N)
0.399
Rms(kg/s)
4.02
Le(mH)
0.3
Mms(gr)
114
Vd(l)
0.742
Sd(sq.mm)
53000
X-max(mm)
14
X-mech(mm)
18
Re(Ohm)
5.5

General Parameters

Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
89.4

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
