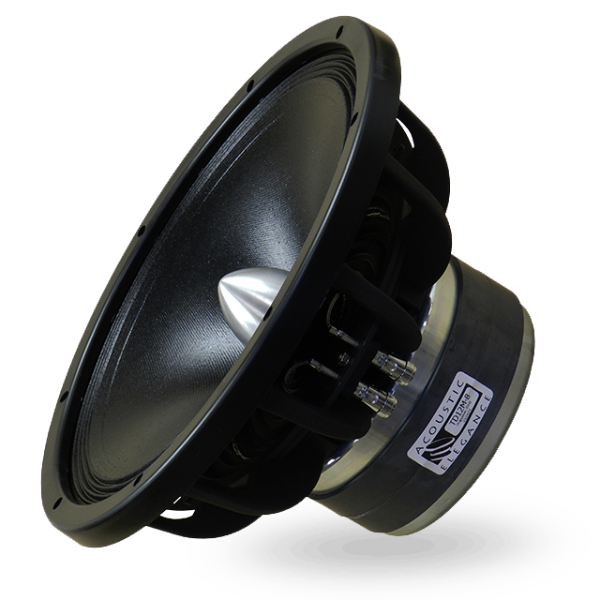

AE Speakers TD12M-4
AE Speakers TD12M-4
Model

AE Speakers TD12M-4

Rating
DIAM
12"
FS(Hz)
38.1
VAS(l)
140
QTS
0.25
PWR(W)
1000
SPL(dB)
96.1
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
38.1
Vas(l)
140
Qts
0.25
Qms
2.99
Qes
0.29
Bl(Tm)
11.9
Cms(mm/N)
0.35
Rms(kg/s)
4
Le(mH)
0.2
Mms(gr)
50
Vd(l)
0.319
Sd(sq.mm)
53100
X-max(mm)
6
X-mech(mm)
10
Re(Ohm)
3.2

General Parameters

Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.57
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
100.1

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
